Roots Blower-Twin Lobe Roots blower manufacturers

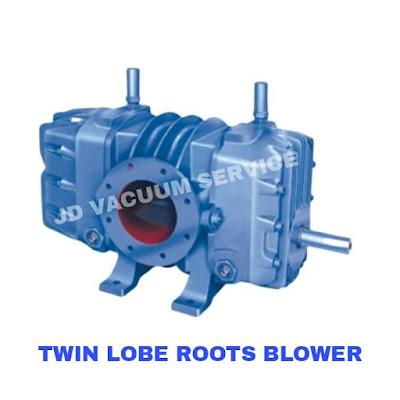

Roots blower image

Roots Blower-Twin Lobe Roots blower manufacturers

AIR COOLED COMPRESSOR - JDGR/JDWR SERIES

JD VACUUM SERVICE Roots blower manufacturer suppliers in India. We are into full-fledged manufacturing of a good range of Twin Lobe Roots blower  Exhausters. Over a period of time, we have developed a series of Twin Lobe Roots blowers / Roots blowers having unmatched quality & performance. These Twin Lobe Roots blowers are specially designed for continuous applications, demanding constant flow at varying discharge pressures, such as in E.T.P., Pneumatic Conveying, etc.

These Twin Lobe Roots Blower Pressure is Air Cooled Machines and is capable to develop pressure up to 1 kg./Cm2 & for vacuum duty up to 0.6 kg/cm2. Two-stage machines are often offered for pressure up to 2.2 kg/cm2. The Roots Blower is being manufactured in 10 different models to cover the suction capacity ranging from 70 M3/hr to 7000 M3/hr. Roots blower for aquaculture As per the required suction capacity and pressure requirement, a suitable model of the Roots Blower price can be offered.

These Roots Blowers compressors are designed in such a way that the same can have vertical or horizontal airflow. Further, the Roots blower working with its standard accessories is being supplied together compact unit which makes it very easy to put in. It is also available as a bare machine for replacement. Roots blower working principle pdf
These Roots Blowers are tested for performance as per BS-1571 Part II to work out capacity, pressure, and power consumption. Stringent internal control tests are administered at each stage of production and every unit is given a test run lasting several hours under increased load.
Roots Blower-Twin Lobe Roots blower manufacturers


LOW-PRESSURE TWIN LOBE ROOTS BLOWER  OF 'JDGR' SERIES

These are air-cooled machines and are being manufactured in three different models. The Roots Blower is designed for a maximum pressure of 5000 MM/WG. & the capacity ranges from 200 m3/ hr to 2300 m3/ hr.

LOW-PRESSURE TWIN LOBE ROOTS BLOWER OF 'JDWR' SERIES

These are water Cooled Machines and can develop pressure up to 10000 mm/hg. The suction capacity of the machines ranges from 125 m3/hr. to 1900 m3/hr. Considering the environment prevailing in India, water-cooled designed models are more suitable when the same is to operate at a pressure of 10000 MM/WG. The same machine, when running for Exhauster duty, creates a vacuum of 4000 MM/WG.
These blowers have a unique design of single inlet & single outlet for cooling water and no cumbersome water pipe connections externally. Internal circulation of water to various areas is through inbuilt channels. The unique design makes these operations very simple, yet very effective. The cooling water inlet is at rock bottom in order that the water rises up against gravity, reaching all the corners before it comes out from the outlet. The flow rates of cooling water are low.

Roots blower spare parts

JD Vacuum Service is a manufacturer of Roots Blower Spare Parts and Twin Lobe Roots Blowers Spare Parts, all parts & Accessories, we are the largest supplier in Ahmedabad, Gujarat, India.

OUR TWIN LOBE ROOTS BLOWER / ROOTS BLOWER ARE PROVIDING A UNIVERSAL AND IDEAL SOLUTION IN THE FOLLOWING FIELDS.

  • Pneumatic Conveying
  • Breweries & Distilleries
  • Refineries
  • Chemical
  • Cement
  • Sugar
  • Textile
  • Gas
  • Water Treatment
  • Sewage & Effluent
  • Soap & Detergents
  • Food Processing
  • Pharmaceutical
  • Iron & Steel
  • Fertilizer
  • Ice

Roots blower application

  • Sulphitation process in Sugar Industries
  • Filter Bed Agitation – Water Treatment Plants
  • Effluent/ Water Treatment Plant
  • Pneumatic Conveying- Cattle feed, Cement, Chemicals, Grain, Flour
  • Slurry Agitation of chemical solution
  • Boosting or Evacuation of gases
  • Humidification – Loom Sheds
  • Centralized vacuum cleaning
  • Fertilizer & Chemical projects
  • Pressurization of high altitude Chambers
  • Cement Blending, Areation, Fluidization.
  • Air Blowing Glass Industry
  • Fisheries/ Hatcheries / Aquaculture
  • Agitation of liquids-Electroplating plants, Ice-plants, Lamps & Luminaries manufacturing plants, etc

FEATURES

  • 100 % Oil-free compression
  • Suitable for various gases such as air, town gas, natural gas, nitrogen, hydrogen, carbon dioxide, inert gases, etc
  • High precision helical timing gears for reliability & long life
  • Adjustable machine feet permit both horizontal & vertical flow of the medium
  • Overhung V-belt drive for all operating and pressure ranges. The direct coupling also possible
  • Dynamically balanced rotating components to ensure vibration-free operations
  • Machine shaft height matched with standard IEC motor frame size.
  • Solid, noise-absorbing construction in grey cast iron
  • Heat resistant
  • Split casing design facilitates easy maintenance and repair.
  • Rugged construction for heavy-duty application.
  • Prompt after-sales service all over the country.

STANDARDS MATERIAL OF CONSTRUCTION
